Saudi Arabia remains the global epicenter of Seawater Reverse Osmosis (SWRO) innovation and capacity deployment. Driven by Saudi Vision 2030, the Kingdom is rapidly shifting away from energy-intensive thermal desalination plants (like Multi-Stage Flash) to high-efficiency, low-carbon SWRO facilities. Under the oversight of the Saudi Water Authority (SWA, formerly SWCC) and the Saudi Water Partnership Company (SWPC), mega-desalination plants are expanding across both the Red Sea and Arabian Gulf coastlines.

However, SWRO plants present some of the most aggressive operating environments in the process industries. Flow control equipment must withstand extreme fluid velocities, severe seawater corrosion, localized pitting, crevice degradation, and high operating pressures exceeding 70 bar (1,000 PSI). Achieving zero unscheduled downtime requires specifying precision-engineered, corrosion-resistant valve assemblies built to international desalination standards.

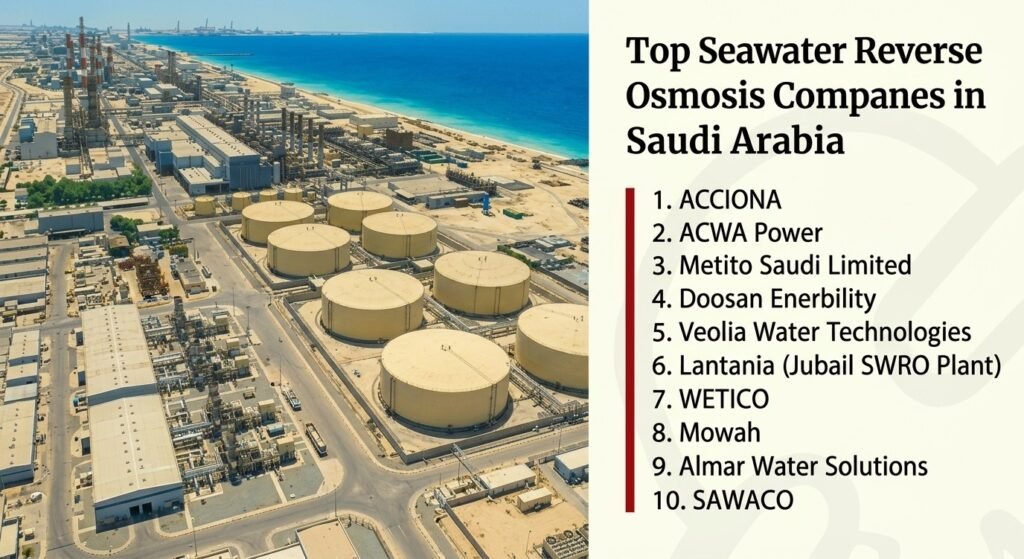

Top Seawater Reverse Osmosis (SWRO) Companies in Saudi Arabia

The construction, funding, and maintenance of hyper-scale SWRO infrastructure in the Kingdom rely on an elite ecosystem of global EPC contractors, asset developers, and specialized system integrators:

Process-by-Process Valve Selection Guide for SWRO Plants

Desalination is not a single uniform process; chemical, thermal, and pressure dynamics change dramatically across different stages of an SWRO plant. Valve selection must be precisely matched to each specific process zone:

[Raw Seawater Intake] ──► [Pretreatment & Filtration] ──► [High-Pressure RO Racks] ──► [Post-Treatment / Potabilization]
        │                                                         │                                    │
        ├── Nickel Aluminum Bronze (NAB)                          ├── Super Duplex (2507)              ├── Epoxy-Coated Ductile Iron
        └── Rubber-Lined Butterfly Valves                         └── Metal-Seated Ball Valves         └── Resilient-Seated Gate Valves

1. Seawater Intake & Outfall (Raw Marine Environment)

• Conditions: Low pressure, high biological fouling, sand abrasive content, and raw seawater exposure.
• Recommended Valves: Large-diameter Concentric/Double Eccentric Rubber-Lined Butterfly Valves (ANSI Class 150/PN10–PN16), Slurry Gate Valves, and Dual-Plate Check Valves.
• Material Grades: Bodies cast in Nickel Aluminum Bronze (NAB – ASTM B148 C95800 / C95500) or Super Duplex Stainless Steel (CE3MN / UNS S32750) discs to eliminate biofouling corrosion.

2. Pretreatment & Filtration Skids (Chemical Conditioning)

• Conditions: Addition of coagulants, ferric chloride, chlorine, and anti-scalants. Moderate velocity and variable pH.
• Recommended Valves: High-performance Offset Butterfly Valves, Dual-Plate Check Valves, and Air Release Valves (to prevent vacuum collapse in intake pipelines).
• Material Grades: Duplex 2205 (UNS S31803) or Austenitic Stainless Steel (SS316L) with high-grade EPDM / FKM elastomeric liners.

3. High-Pressure RO Racks & Energy Recovery Devices (ERD)

• Conditions: Extremely harsh. Pressures reach 70 to 80 bar (ASME Class 300 to Class 600) processing concentrated brine reject. Severe risk of crevice corrosion and cavitation.
• Recommended Valves: Trunnion-Mounted Metal-Seated Ball Valves, Severe-Service Globe Control Valves (for high-differential pressure letdown), and Piston Check Valves.
• Material Grades: Super Duplex Stainless Steel 2507 (UNS S32750 / ASTM A182 F53), Zeron 100 (UNS S32760), or 254 SMO (UNS S31254 / CK3MCuN).

4. Chemical Cleaning-In-Place (CIP) & Dosing Systems

• Conditions: Highly concentrated acid (citric/sulfuric acid) and alkaline flush cycles used to periodically dissolve membrane scaling.
• Recommended Valves: Fluoropolymer Lined Plug Valves, PTFE/PFA Lined Butterfly Valves, and Diaphragm Valves.
• Material Grades: PFA/PTFE full linings with Hastelloy C276 (UNS N10276) or Titanium Grade 2 trims.

Engineering Metallurgy: PREN & Material Standards

When evaluating wetted valve components for seawater service, specifying engineers rely on the Pitting Resistance Equivalent Number (PREN). The standard industry formula for PREN is:

{PREN} = % {Cr} + 3.3(% {Mo} + 0.5 %{W}) + 16(% {N})

Metallurgy Benchmark Matrix for Desalination Valves

Mandatory Qualification & Approval Standards

To supply valves for SWCC/SWA, NWC, or Aramco-affiliated utility infrastructure, manufacturing specs must strictly adhere to:

• PREN Requirement: Mandatory minimum PREN for all wetted metallic components in high-salinity seawater contact.
• Design & Face-to-Face Standards: API 609 (Butterfly Valves), API 6D / ISO 14313 (Pipeline Isolation), ASME B16.34 (Pressure-Temperature Ratings), and BS EN 593.
• Quality & NDT Testing: 100% Radiographic Testing (RT) on critical cast bodies, Positive Material Identification (PMI), and Hydrostatic Shell/Seat Testing according to API 598 or ISO 5208 Rate A (Zero Leakage).

Summary

As Saudi Arabia sets global benchmarks for sustainable seawater desalination through projects led by ACWA Power, ACCIONA, and Metito, component quality remains paramount. Specifying high-integrity Super Duplex and 254 SMO valves guarantees long term, corrosion-free process performance across all SWRO units.
