Suction Diffusers are pipeline-mounted inlet devices designed to ensure smooth, uniform flow into pumps while removing debris and protecting pumping equipment. They serve as both a strainer and flow-straightening device, eliminating the need for long straight pipe runs at the pump suction.
Suction diffusers help maintain pump efficiency, reduce cavitation, and extend equipment lifespan. They are commonly installed in chilled water, potable water, HVAC systems, firefighting networks, district cooling, industrial water circuits, and desalination plants.
GCC Valves supplies high-performance Suction Diffusers suitable for SWCC, NWC, MARAFIQ, ARAMCO, and industrial projects with full documentation and QA/QC compliance. Pipes pipes at middleastpiping.com
These units are manufactured by several established brands including :
- SVR Suction Diffuser
- Armstrong,
- Armaturen
- KSB, with additional Chinese and Indian-origin options available for budgetary or project-based requirements.
From a documentation perspective, suction diffusers are typically supplied with material test certificates in accordance with EN 10204 3.1, pressure test certificates, inspection and test plans (ITP) along with QA/QC documentation, approved drawings and datasheets, coating certificates, and other project-specific compliance records as required.
In terms of specifications, they are generally available in nominal diameters ranging from DN50 to DN300 (2” to 12”), with larger sizes available upon request depending on project requirements. Pressure ratings typically include PN10, PN16, and PN25, as well as Class 125, Class 150, and Class 300 for ASME-based systems.
Connection types include flanged ends in accordance with ASME B16.1, ASME B16.42, and EN 1092-2 standards, while threaded end connections are also available for smaller sizes where required.

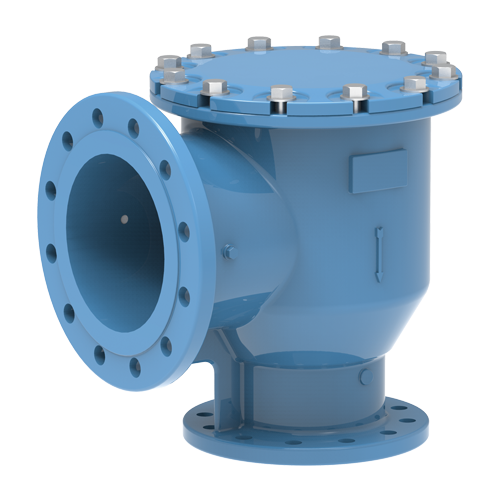

Each suction diffuser is supplied as a complete assembly, incorporating an inlet diffuser cone, a removable stainless steel strainer for debris filtration, an adjustable support foot for proper alignment and load distribution, integral flow-straightening vanes to optimize hydraulic performance, and a blowdown or drain connection for maintenance and flushing operations.
Different configurations are available depending on system requirements, including standard side-cone type suction diffusers, high-flow low-loss designs for improved efficiency, and compact versions optimized for space-constrained installations.
Design and manufacturing generally comply with relevant international standards such as AWWA guidelines, ASME B31.1 and B31.3 for piping compatibility, API 598 for hydrostatic testing requirements, EN 1074-1 for general valve and strainer specifications, and ISO 9001 quality management system certification.
| Technical Parameter | Standard Specifications & Capabilities |
|---|---|
| Nominal Size Range | DN50 to DN300 (2” to 12”) — Larger custom bore diameters available upon request |
| Pressure Design Ratings | PN10 / PN16 / PN25 / Class 125 / Class 150 / Class 300 |
| Body Materials | Ductile Iron (EN-GJS-500-7 / ASTM A536 Gr. 65-45-12), Carbon Steel (ASTM A105), Stainless Steel (AISI 304 / AISI 316) |
| Strainer / Screen Element | Stainless Steel AISI 304 / AISI 316 (1 mm to 4 mm perforated openings / wire mesh options) |
| Internal Core Configuration | Complete assembly with Inlet Diffuser Cone and Integral Flow-Straightening Vanes |
| Structural Support Base | Equipped with adjustable support foot mounting pads and blowdown/drain plug connection |
| End Connections Style | Flanged Ends conforming to ASME B16.1, ASME B16.42, and EN 1092-2 (Threaded options for utility lines) |
| External Protective Coating | Fusion Bonded Epoxy (FBE) Coating, minimum 250 microns DFT; WRAS approved materials for municipal lines |
| Applicable Standards | AWWA C606, ASME B31.1 / B31.3 Piping compliance, API 598 Hydrostatic Testing, EN 1074-1 |
| B2B Quality Assurance | EN 10204 3.1 Material Test Certificates (MTC), Hydrostatic pressure test logs, GA dimensional drawings |
| Project Approvals Included | SWCC, NWC, MARAFIQ, Saudi Aramco, ADNOC, SABIC, BAPCO Energies, NFPA Pump Rooms |
| Stocking Brands Offered | Armstrong, Taco, KSB, SVR Suction Diffuser, ARI Armaturen |
